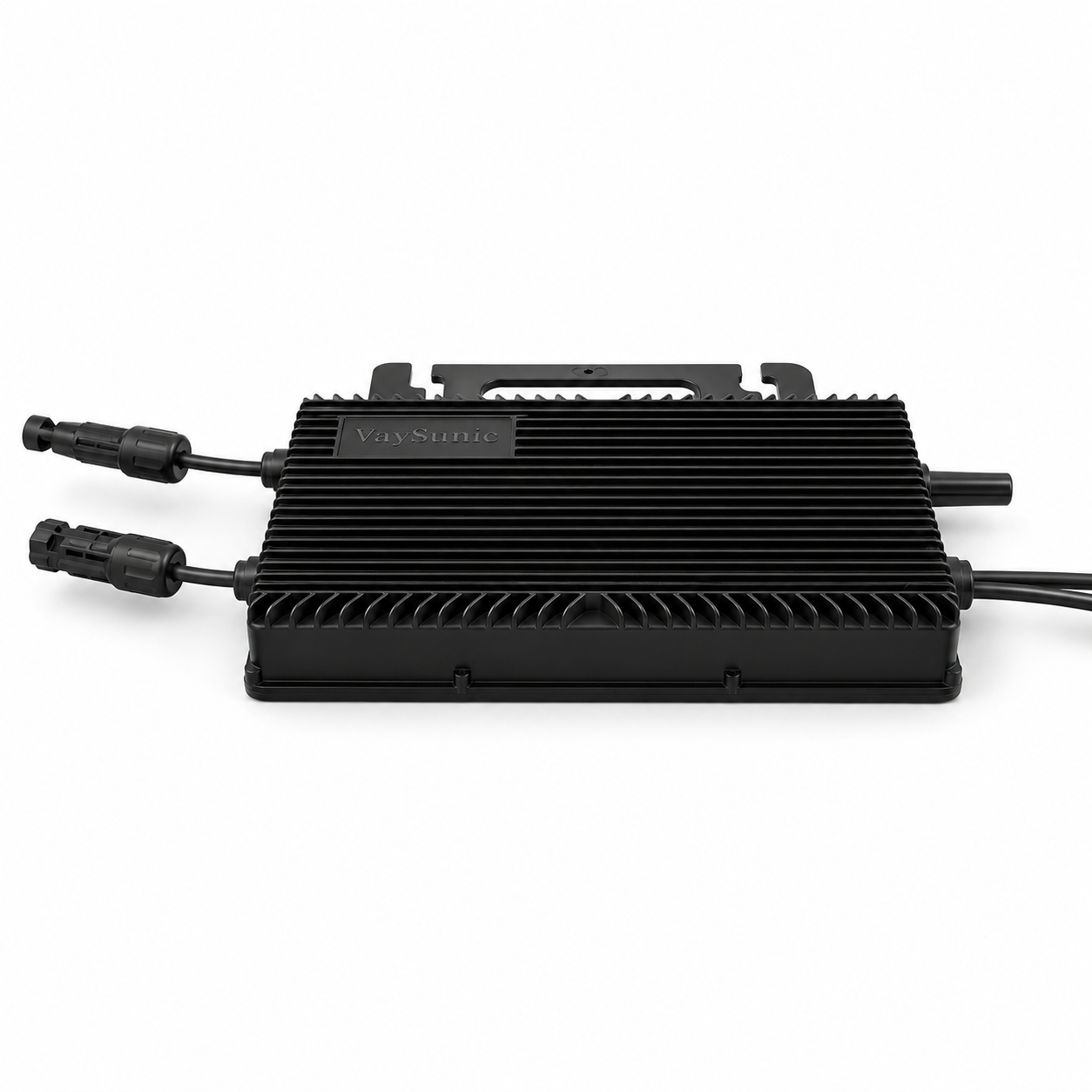

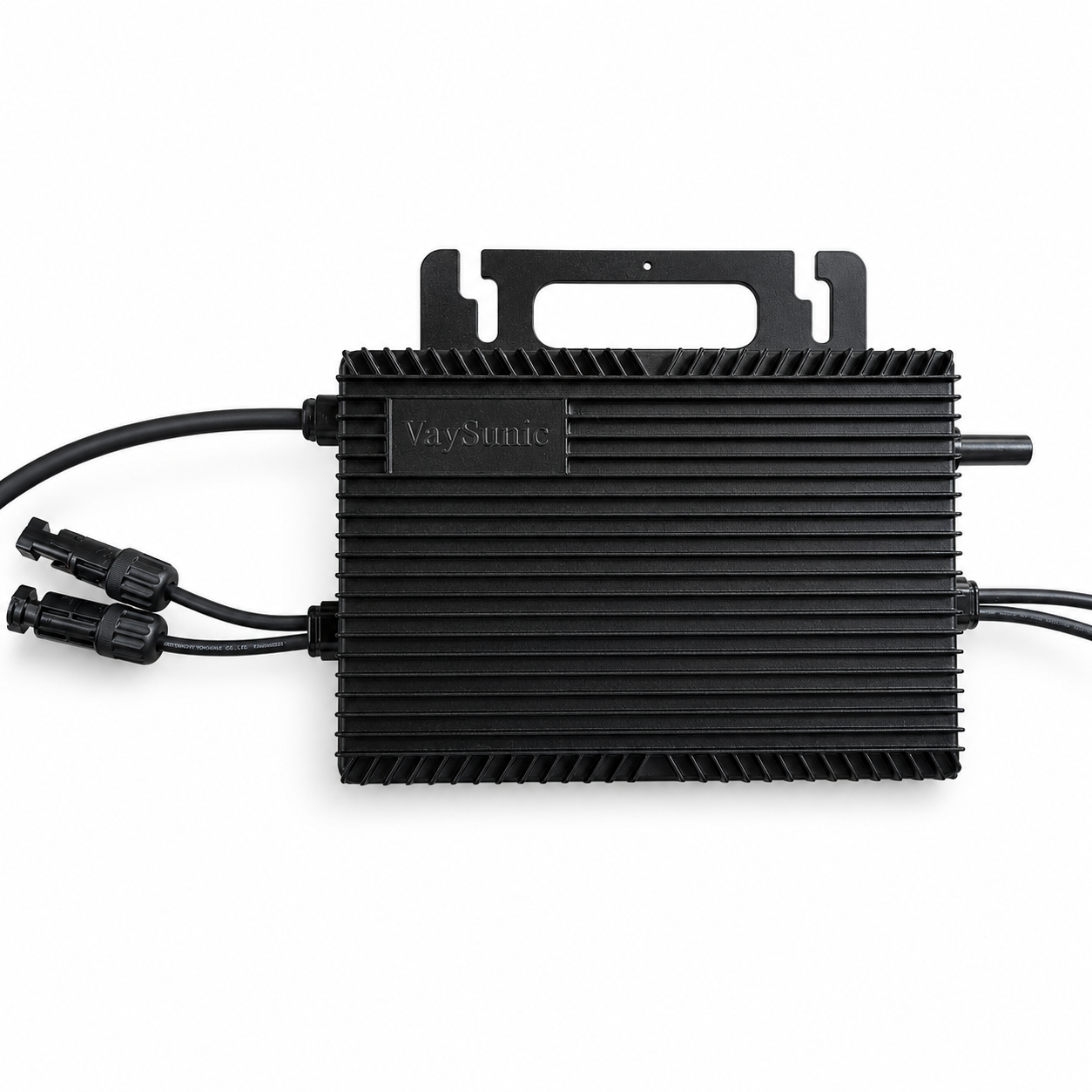

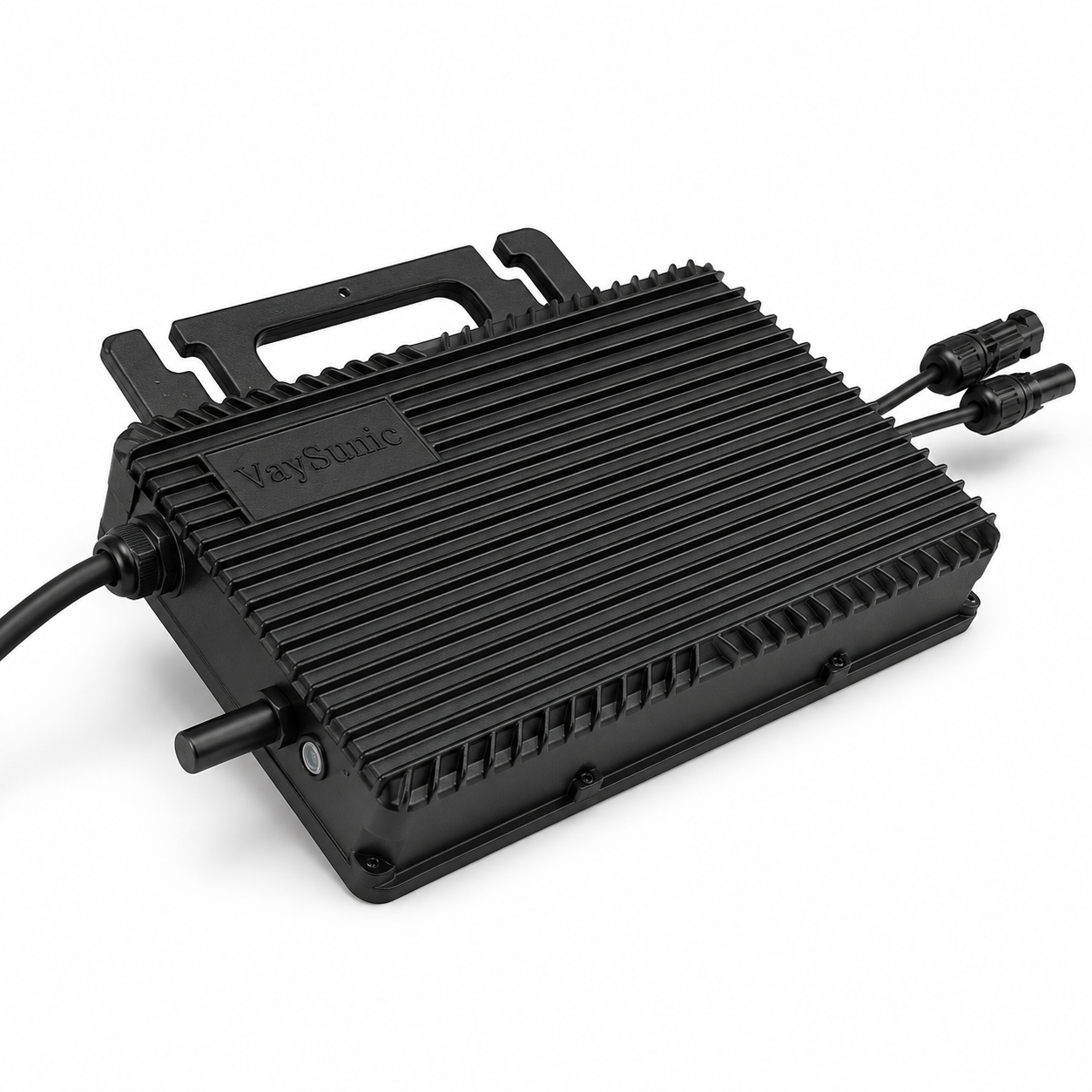

VaySunic 800W Micro Inverter VM800WE-P2 – for Balcony Power Plant & SERAPP SolMic Solar Modules

The VaySunic VM800WE-P2 micro inverter is a compact inverter for balcony power plants and small photovoltaic systems. It converts the direct current from the solar modules into household alternating current and is suitable for use with compatible PV modules, such as SERAPP SolMic solar modules or other compatible solar modules.

The micro inverter has two PV inputs and is designed for a maximum output power of 800VA. Suitable solar modules can be connected directly to the inverter via the MC4-compatible DC connectors. Installation is carried out according to the instructions via the PV inputs and the AC connection. The VIP Cloud App can be used for monitoring.

Highlights:

• VaySunic Micro Inverter for Balcony Power Plants
• Model: VM800WE-P2
• 800VA maximum output power
• 2 PV inputs
• Suitable for compatible solar modules, e.g. SERAPP SolMic modules

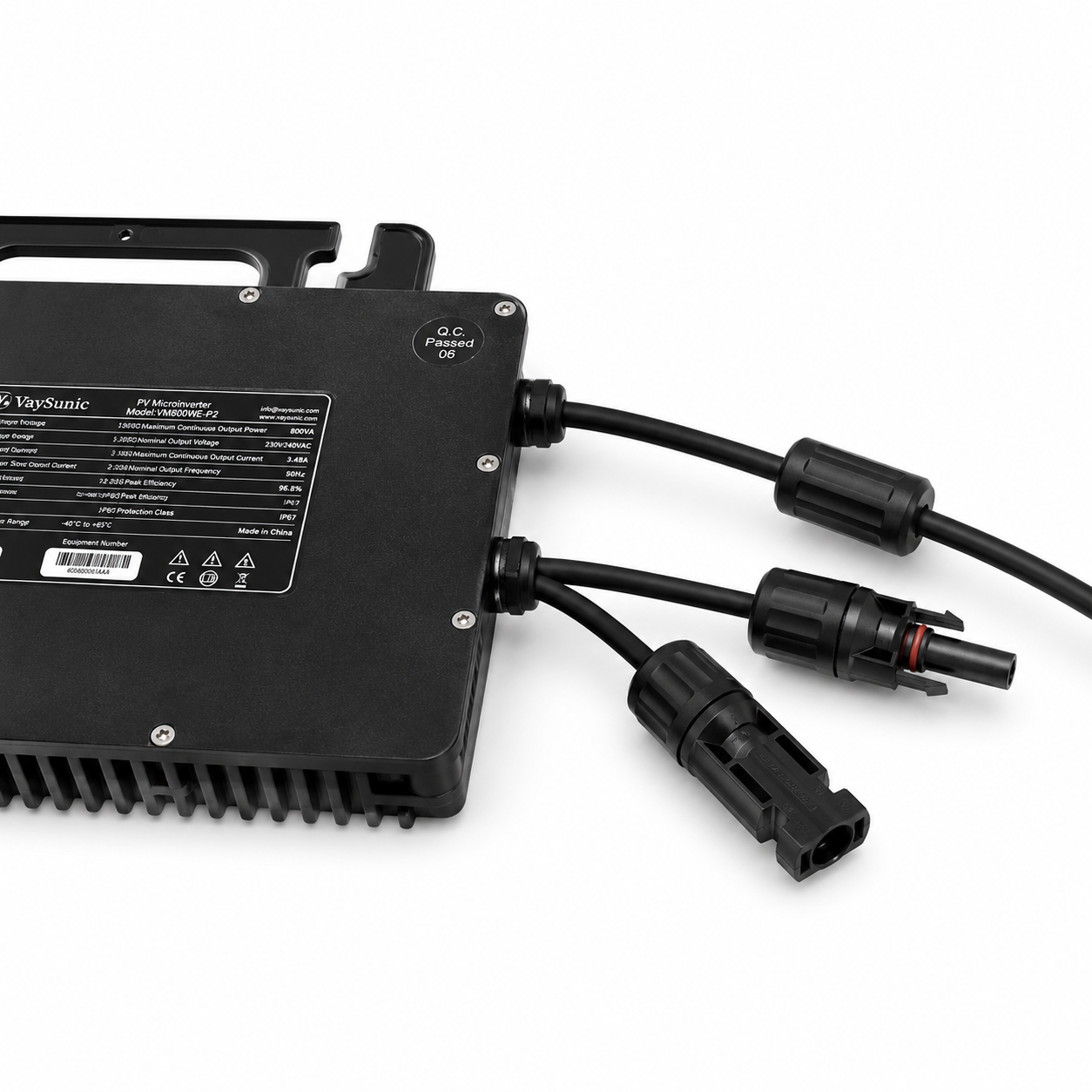

• MC4-compatible PV connectors
• Plug-and-play cable system according to installation instructions
• IP67 protection class
• WiFi / App monitoring via VIP Cloud
• Compact design for balconies, terraces, garden sheds and small PV systems

Technical data:

• Brand: VaySunic
• Model: VM800WE-P2
• Maximum input voltage: 63V DC
• MPPT voltage range: 16–60V DC
• Maximum input current: 2 × 15A
• Maximum input short-circuit current: 2 × 25A
• Maximum continuous output power: 800VA
• Rated output voltage: 230/240V AC
• Maximum output current: 3.48A
• Frequency: 50Hz
• Power factor: > 0.99
• Peak efficiency: 96.8%
• Protection class: IP67
• Operating temperature range: -40 °C to +65 °C

Note:
Before installation, please check the compatibility of the connected solar modules with the technical data of the inverter. Installation and commissioning must be carried out in accordance with the installation instructions and applicable regulations. If you are unsure, we recommend installation by a qualified person.
